Check Door Fit Before Choosing a Hidden Hinge

TamBee's 7-inch black hinge helps homeowners plan secret doors and feature walls with hidden door hinges that sit out of sight. Use this check before you buy door hinges for a heavy, clean-lined door project.

View Product Shop TamBee Hardware

177 lbsTwo-hinge listed support

7 inListed hinge length

3-wayVertical, horizontal, depth

BlackConcealed finish

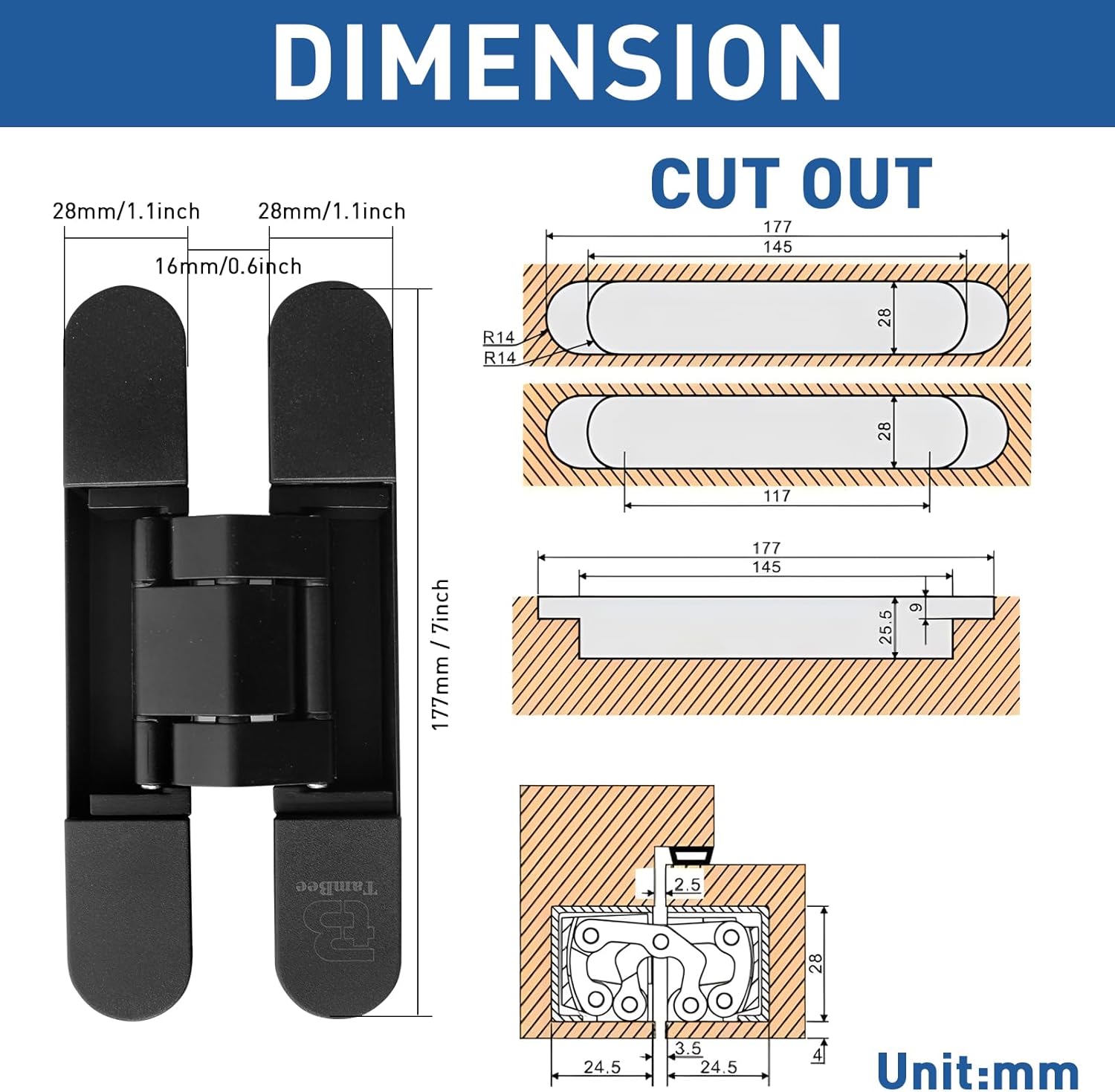

TamBee black hidden door hinges for secret doors

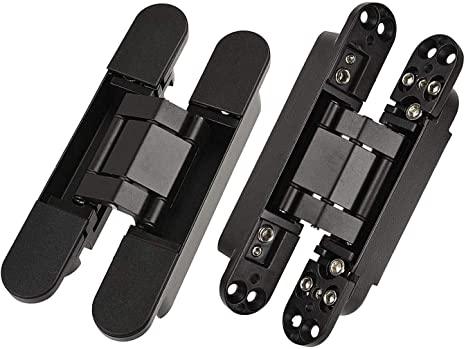

Pair of black 7-inch concealed door hinges

Fit Facts

Measure the Door Before You Plan the Opening

Hidden hardware works best when the door and wall plan match the hinge limits. Start with the listed dimensions and support range, then plan the installation path.

Product	Hidden Door Hinge - 7" - Black
Listed size	7 x 2.8 x 1 inch
Material	Zinc and alloy aluminum materials
Support	Two hinges support 177 lbs
Door thickness	Greater than 40 mm
Door width	Less than 1000 mm
Adjustment	Vertical +/- 3.0 mm, horizontal +/- 2.0 mm, depth +/- 1.0 mm
Use case	Secret doors, feature walls, hidden entrances, and minimalist rooms

Door and Wall Planning

Match the Hinge to the Wall Surface You Want to Hide

A black concealed hinge is most useful when the door edge, wall finish, and hinge adjustment can work together instead of drawing attention to the opening.

Flush visual goal

Choose this style when visible hinge pins would interrupt a panel wall, bookcase door, closet entrance, or hidden room opening.

Door weight check

Use the 177 lbs two-hinge support listing as a starting point, then compare it with the actual door slab and hardware plan.

Clearance planning

Confirm trim, wall panels, handle placement, and swing clearance before cutting or routing the door.

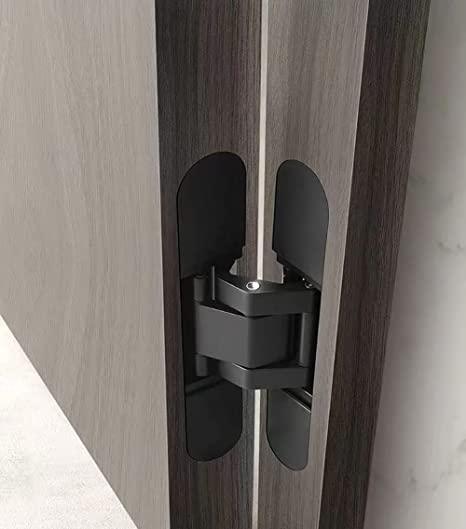

TamBee hidden hinge detail for adjustment planning

Installation Checkpoints

Use the 3-Way Adjustment for Final Alignment

Three-dimensional adjustment helps refine the door after it is mounted, but it does not replace careful measuring, routing, and support planning before installation.

Vertical alignment

Plan for plus or minus 3.0 mm of vertical adjustment when the reveal needs a small correction after mounting.

Horizontal alignment

Use the plus or minus 2.0 mm horizontal adjustment to refine the side gap and door position.

Depth alignment

The plus or minus 1.0 mm depth adjustment helps tune the door face against the surrounding surface.

More TamBee Hardware

Related Hinges for Different Door Jobs

If a hidden entrance is not the only project, compare these TamBee hinge styles for cabinets, self-closing doors, and swinging cafe doors.

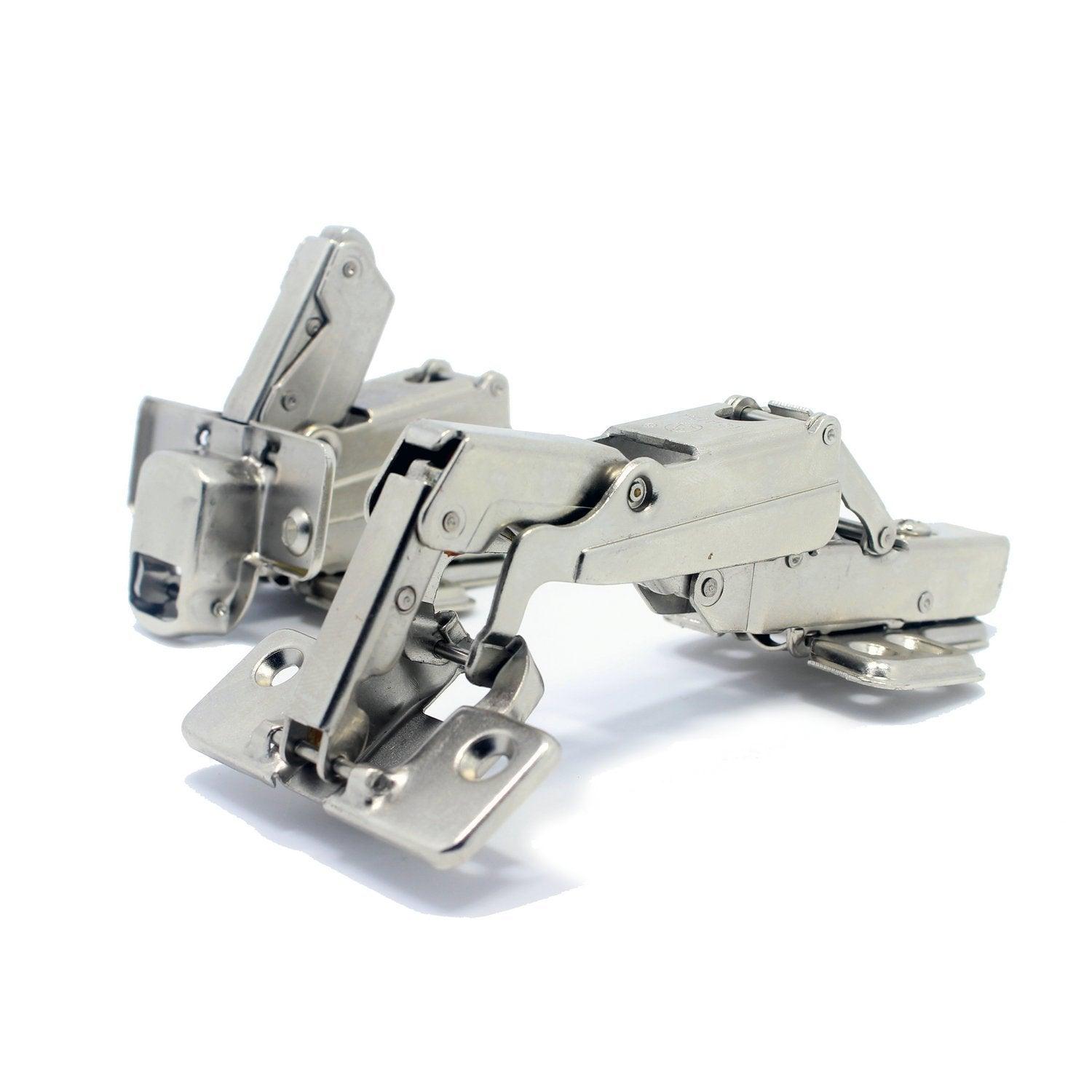

165-Degree Cabinet Hinges

Use this style for cabinet and wardrobe projects that need a wide-opening concealed hinge format.

View cabinet hinge

Auto-Close Spring Hinge

Review this option when the door should close by spring action while keeping a 4-inch hinge format.

View spring hinge

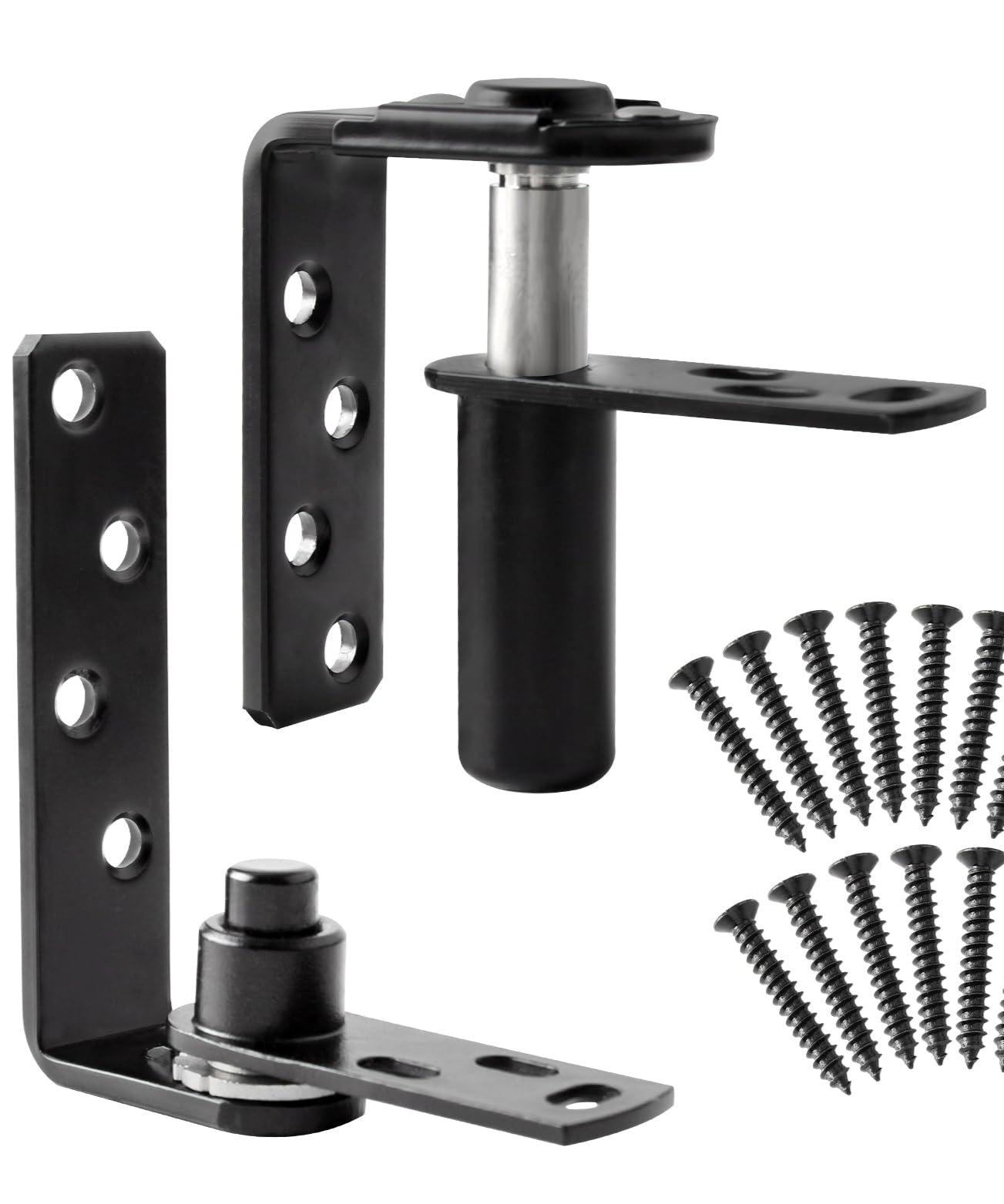

Black Cafe Door Hinge

Choose this direction for swinging door hardware where gravity hinge motion fits the room better than a hidden hinge.

View cafe hinge

Helpful Reading

Plan the Hidden Door Before You Order

These TamBee articles help connect concealed hardware, black hinge styling, and residential installation choices with the project you are planning.

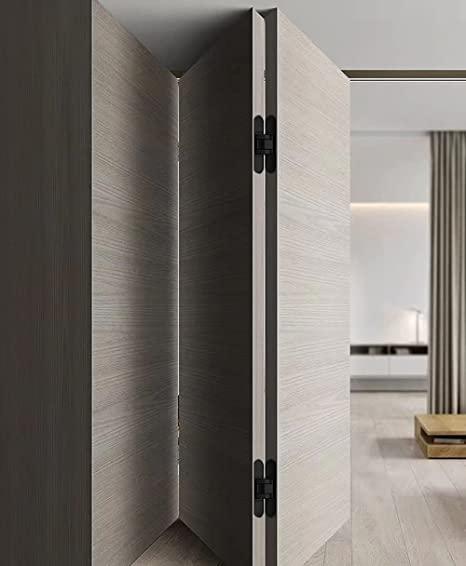

TamBee hidden door hinge detail for renovation planning

Concealed Hinges in Home Renovation

Use this guide to think through where hidden hardware can help a modern room look cleaner.

Read renovation ideas

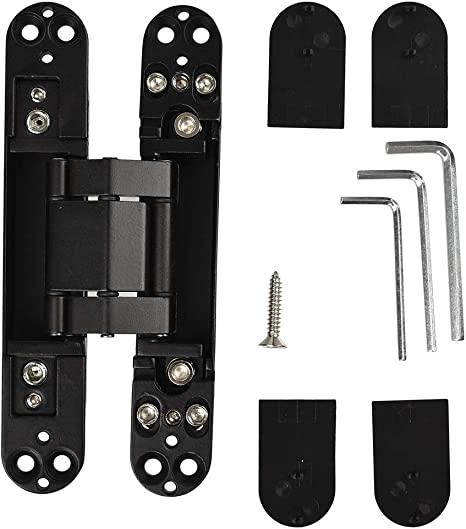

Black hidden hinge for feature wall planning

Black Door Hinges for Feature Walls

Review how black concealed hardware supports privacy-focused walls and secret-door designs.

Read styling notes

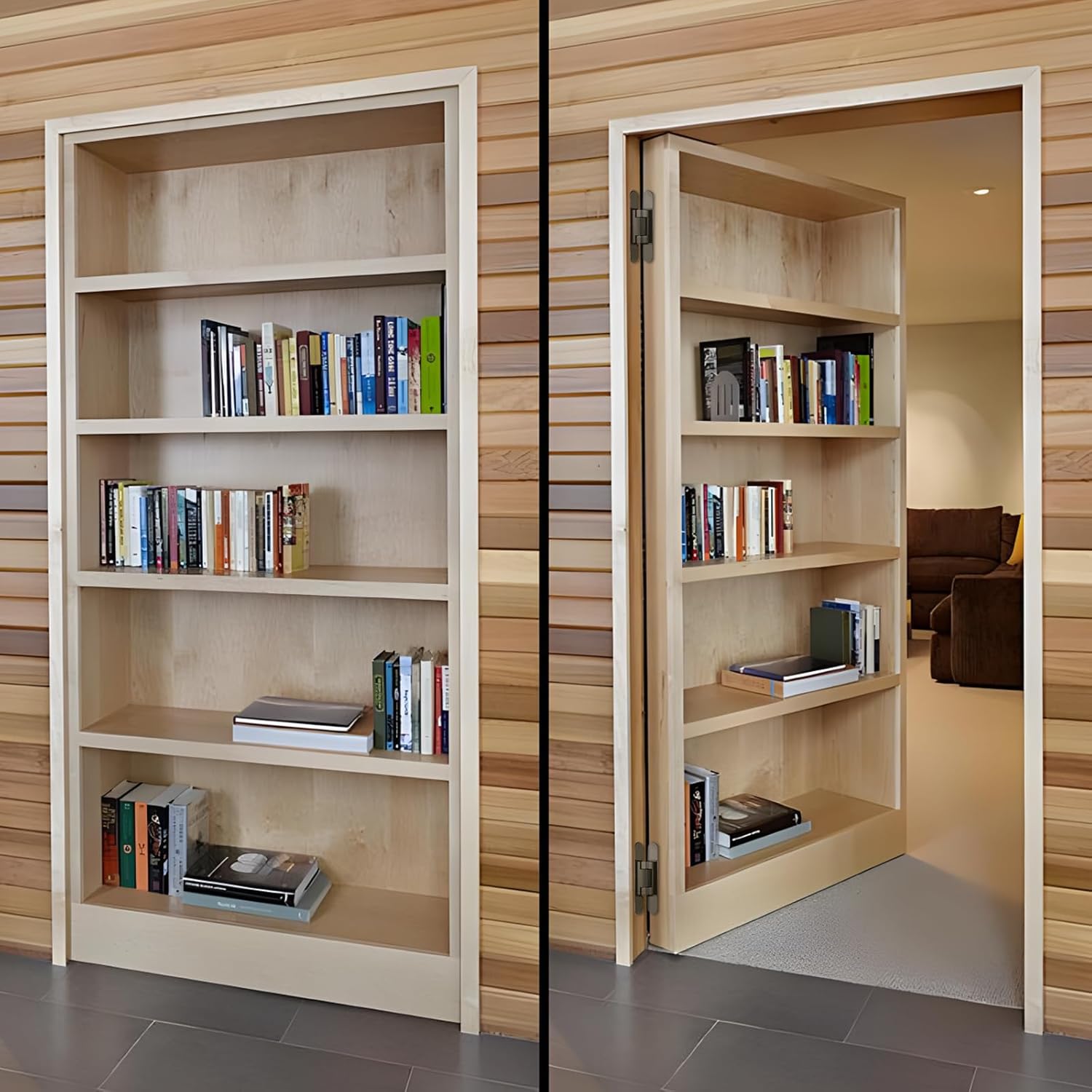

Hidden hinge installation planning detail

Installation Strategy for Concealed Hinges

Check the installation discussion before routing, aligning, and adjusting a residential hidden door.

Read installation notes

Before Ordering

Confirm These Measurements First

A quick pre-order check lowers the chance of choosing a hinge that does not match the door slab or wall finish.

Door thickness: confirm the door is greater than 40 mm thick.
Door width: confirm the door is less than 1000 mm wide.
Door weight: compare the finished door weight with the 177 lbs two-hinge support listing.
Wall finish: check panels, trim, and swing clearance before cutting or routing.

FAQ

Hidden Door Hinge FAQ

What door thickness works with these hidden door hinges?

Use these hinges on doors greater than 40 mm thick and less than 1000 mm wide.

How much weight can two hinges support?

Plan around a listed two-hinge support of 177 lbs.

What is the listed hinge size?

The hinge measures 7 x 2.8 x 1 inch.

Can the hinge be adjusted after installation?

Yes. The hinge adjusts vertically by plus or minus 3.0 mm, horizontally by plus or minus 2.0 mm, and in depth by plus or minus 1.0 mm.

What material is listed for the hinge?

The hinge uses high-quality zinc and alloy aluminum materials.

Where do these hinges make the most sense?

They are made for hidden entrances, secret doors, feature walls, and minimalist door projects where visible hinge pins would interrupt the wall or door surface.
