TamBee

105° Cabinet Hinge · 3/4" Overlay · Face Frame · 4 Pair

105° Cabinet Hinge · 3/4" Overlay · Face Frame · 4 Pair

0 ( 0  Reviews )
$26.99
$26.99
Sale Sold out

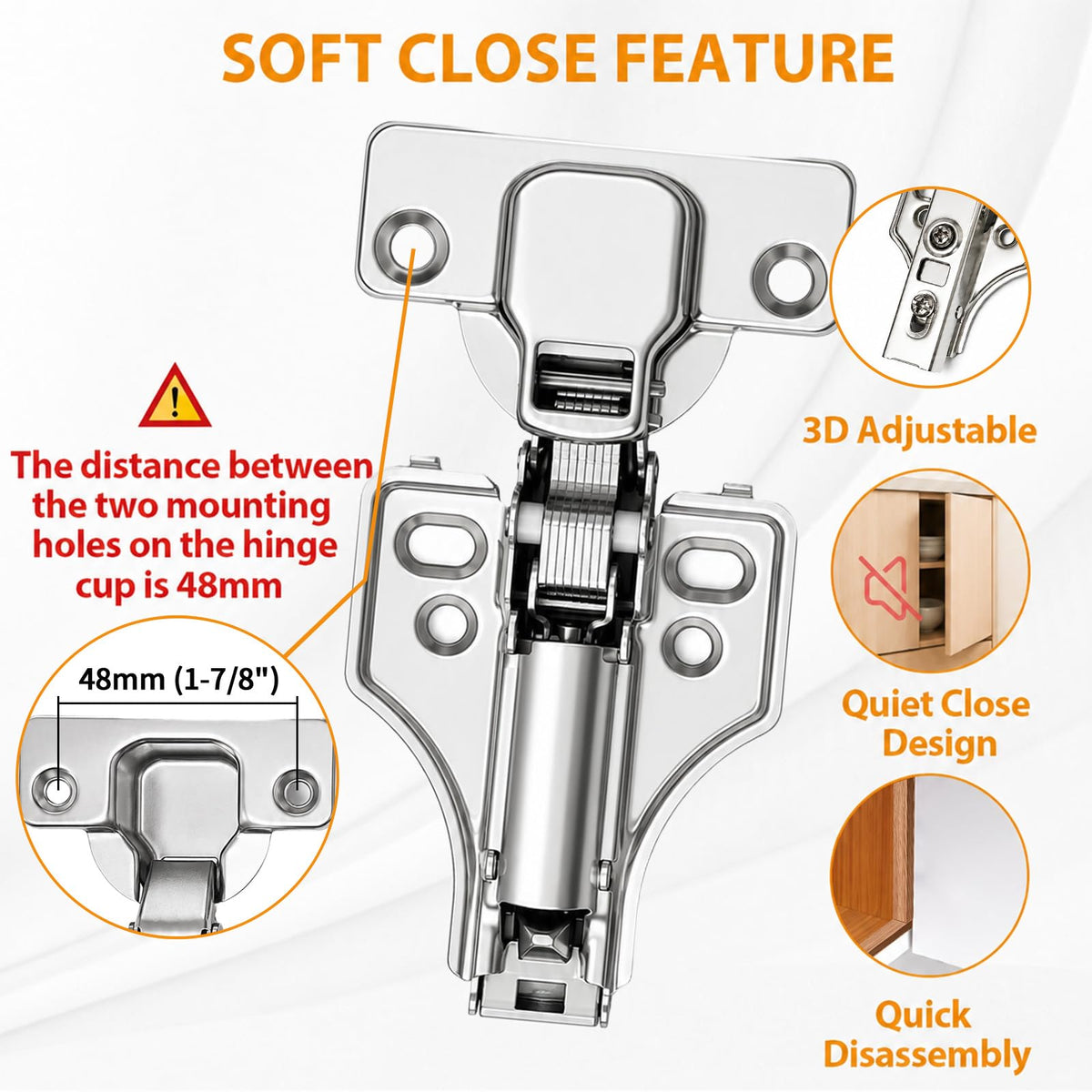

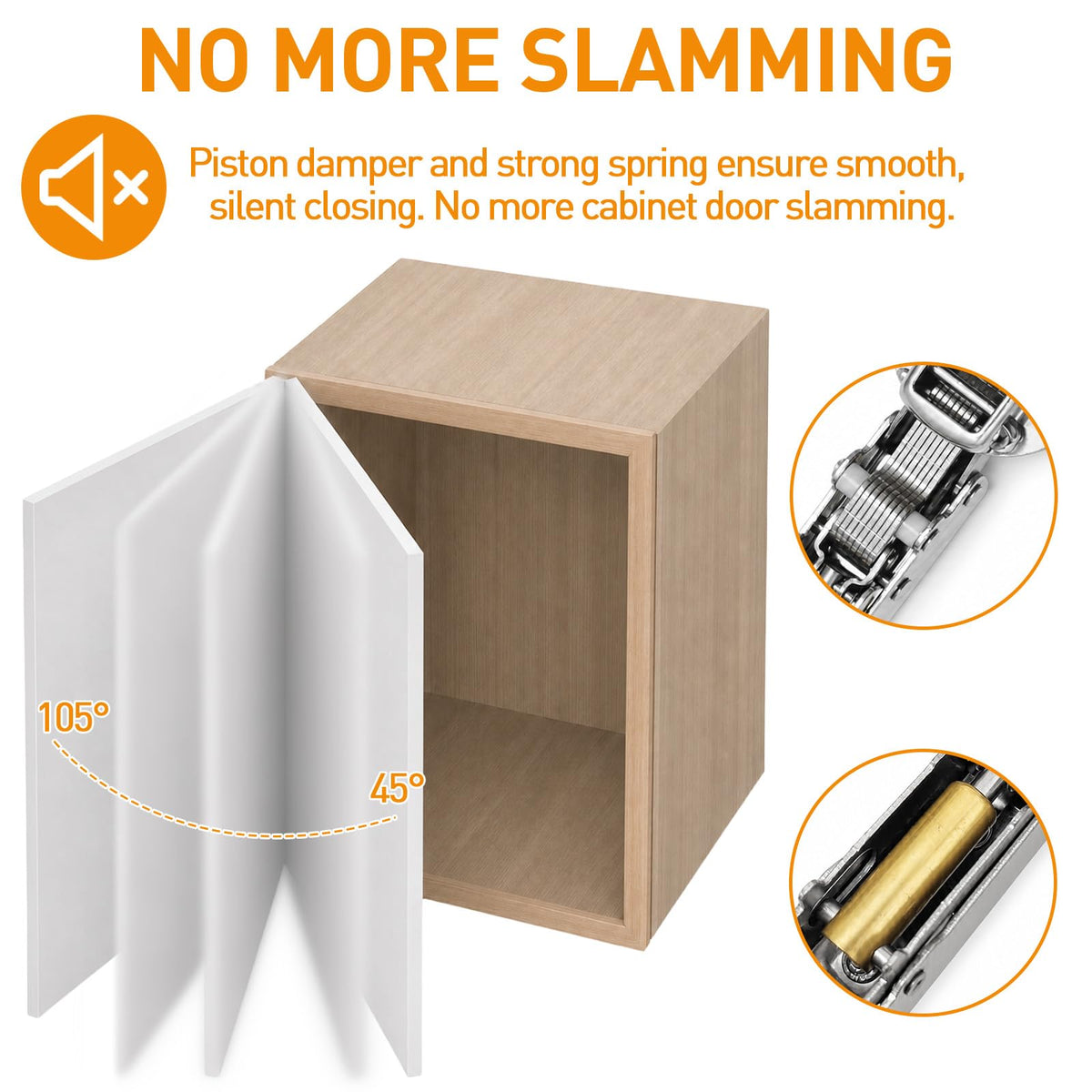

  • Soft Close Technology - Built in damper ensures door closes quietly and smoothly when angle below 45°, eliminating slamming noise and protecting cabinet doors from damage. Features 48mm center-to-center hinge cup hole spacing – please check your size before purchase.

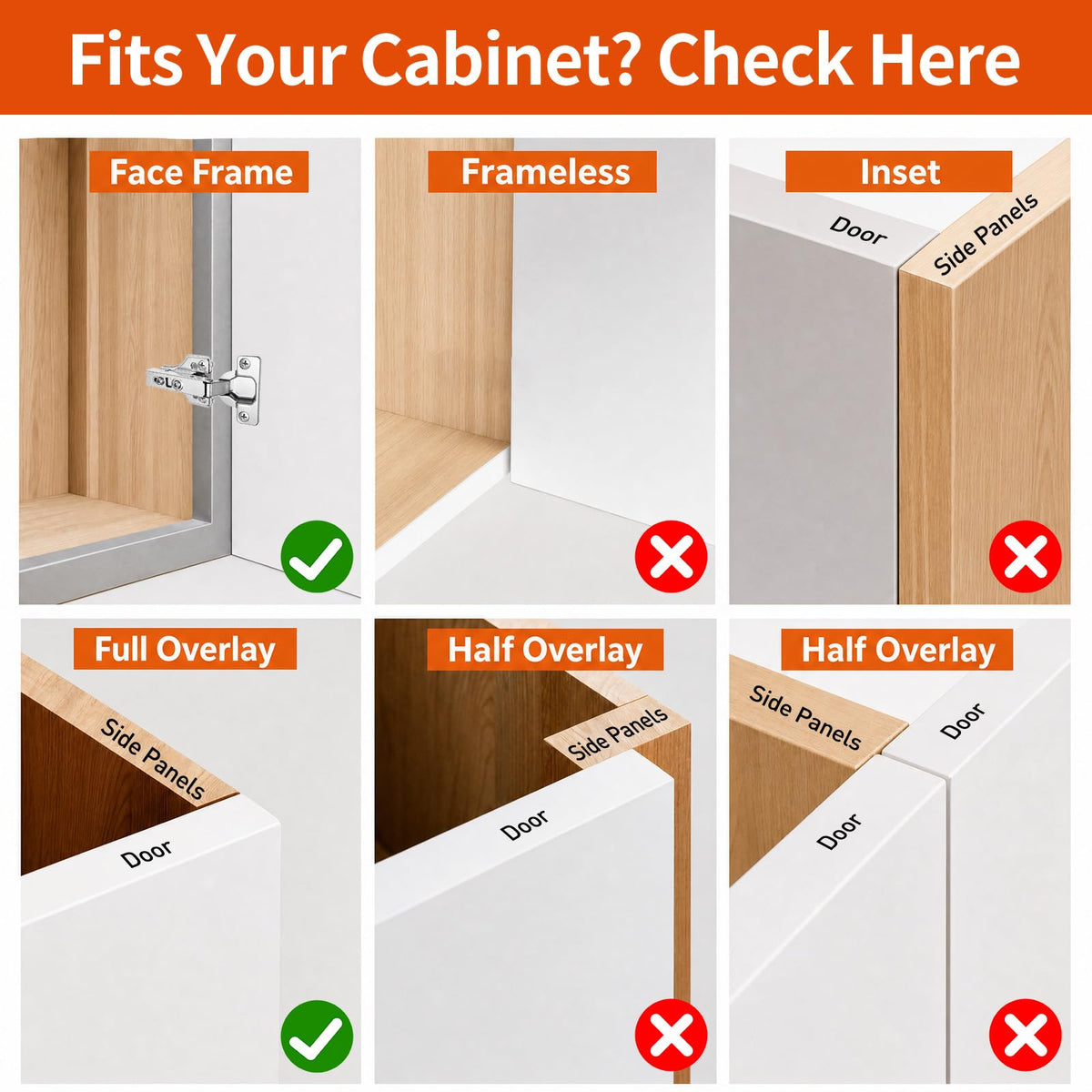

  • 105°Full Overlay Opening - Opens up to 105 degrees with full overlay design for face frame cabinets. Clip-on mounting allows easy installation and door stays at any angle when opened over 45°.

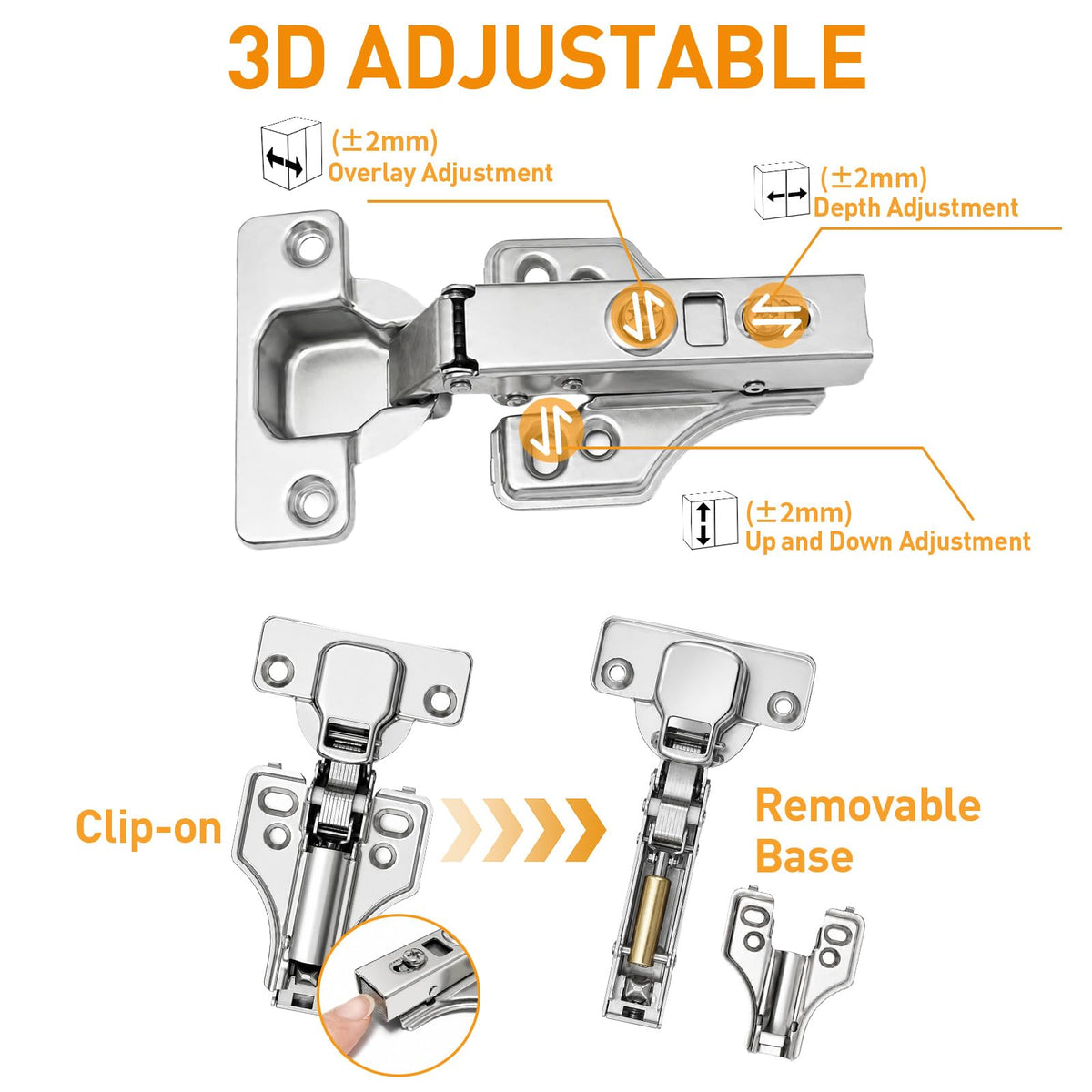

  • Adjustable Design - 32mm screw hole distance on door 3/8" (10mm) from hole to frame edge. Two adjustment screws allow ±5/64" (±2mm) gap alignment for perfect door fit.
  • Premium Material - Made from zinc alloy with nickel-plated finish for rust resistance. Cup size 1-3/8" (35mm) x 1/2" (12mm) fits door thickness 9/16" (14mm)–7/8"(22mm).

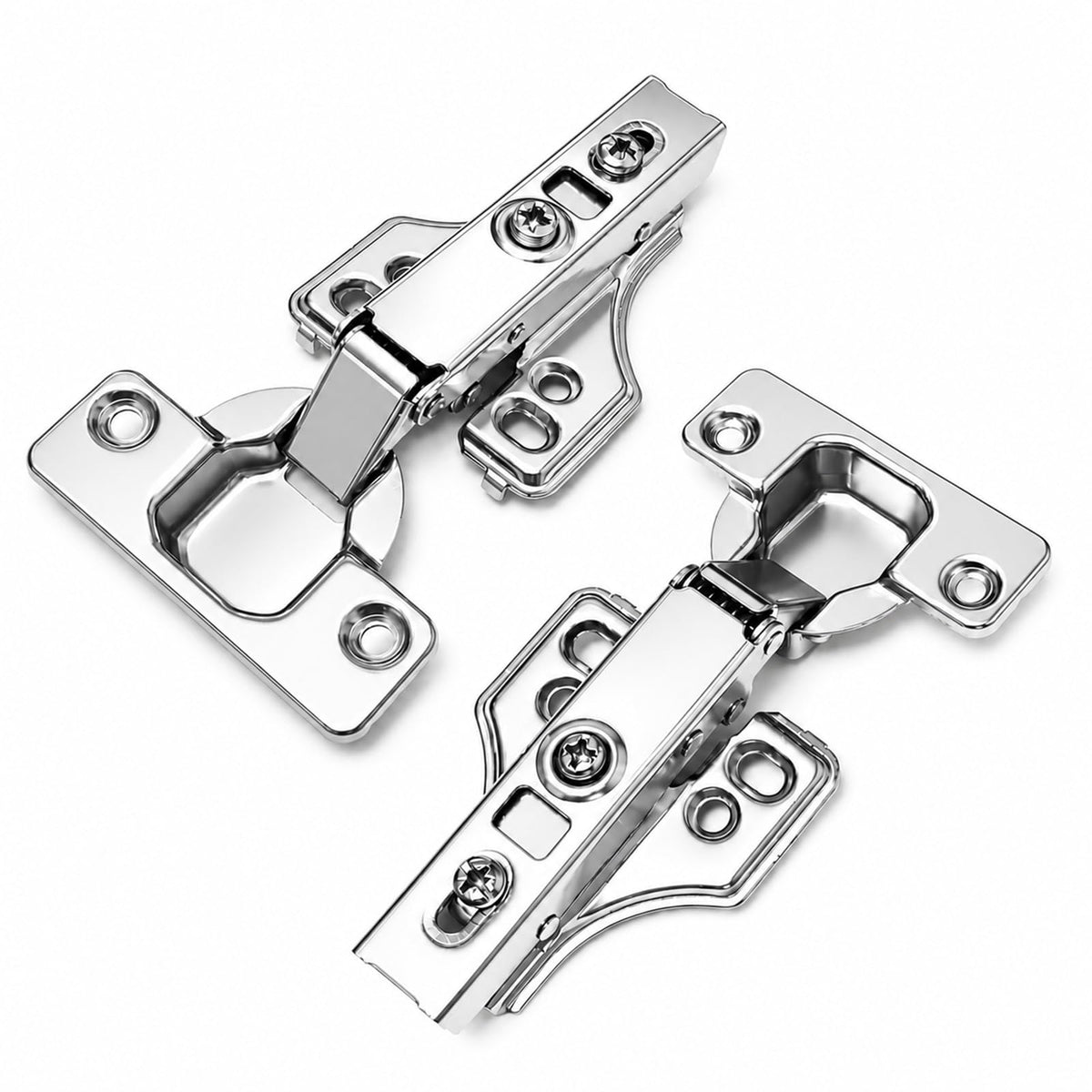

  • Complete Package - Includes 4 pair (8 hinges) with mounting screws and installation plates. Perfect replacement for old or broken cabinet hinges.
View full details

Product Information

Installation Guide

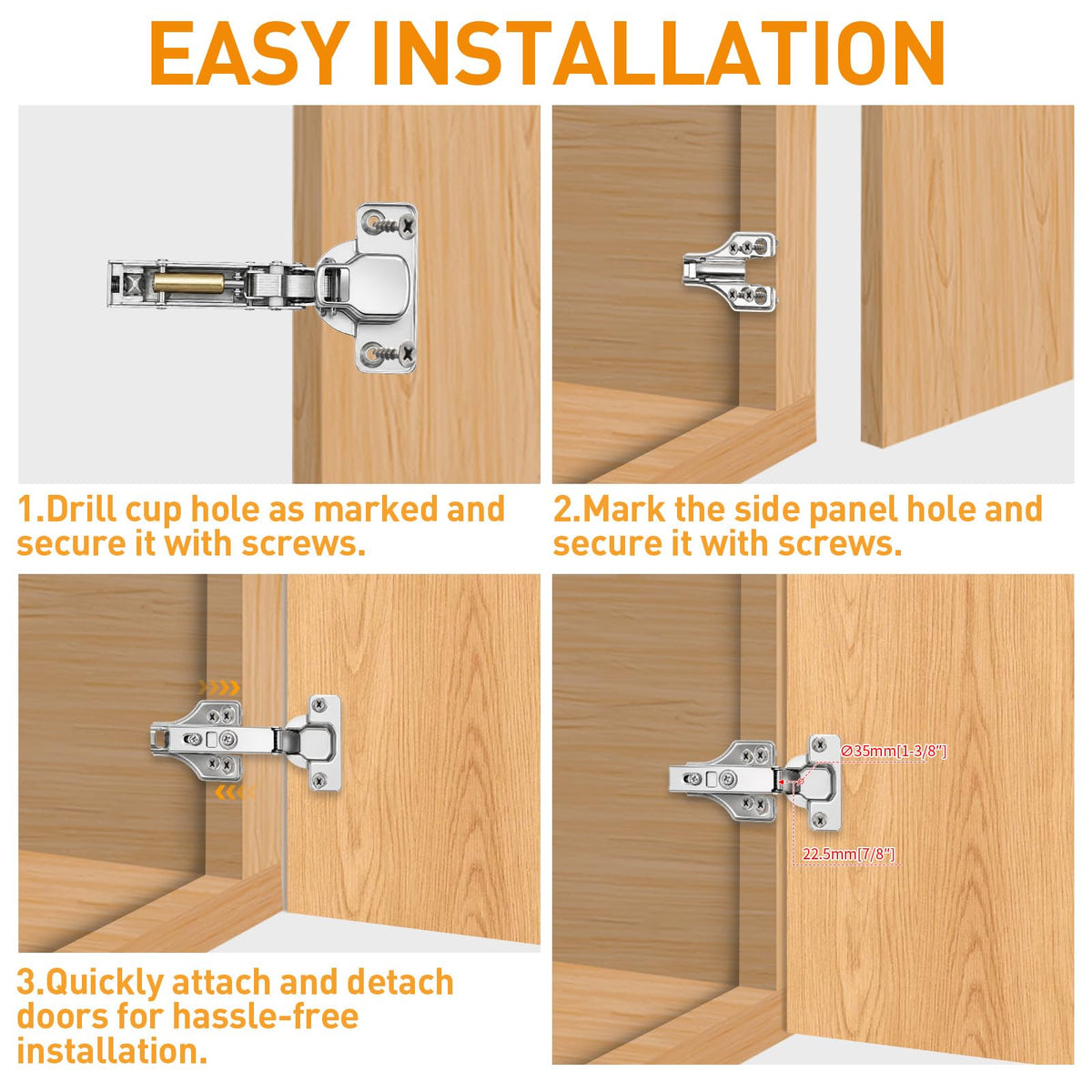

Every TamBee hinge ships with detailed instructions and included hardware. Watch the step-by-step installation video on this page, or download the full manual.

View installation manuals →

Warranty & Returns

30-day free returns on all orders. TamBee-original hardware, engineered for daily use — heavy-duty load ratings up to 1100 lbs on select pivot models.

Shipping

Free shipping on all orders. Delivery 6–15 days within the US.

FAQ

Have a question about hinge selection, door compatibility, or your order? Contact us — we reply within 1 business day.
